Ledvance LED Downlight Slim Round DN105 6W 430lm 120D - 865 Daylight | 118mm
€16.09
€13.25
excl. Tax
incl. Tax
+
€0.05
Ecotax
Order today, shipped tomorrow
i
This product is on stock, we will do our utmost effort to ship the products today.
This product will be in stock on the mentioned date. We will do our utmost effort to ship the products on the date they are on stock.
This product is currently not in stock. We will do our utmost effort to ship the products to you as soon as possible. Please take into account that the delivery time might be longer.
This product is currently not in stock. Do you want to buy one or more items of this product? Then we will place an order directly with our supplier! We will do our utmost effort to ship the products to you as soon as possible. Please take into account that the delivery time might be longer.
Want to order larger quantities?
Specifications
General Information
| SKU | 233362 | |
|---|---|---|
| EAN | 4058075079014 | |
| Brand | Ledvance | |
| Manufacturer Name | DL SLIM DN105 6W/6500K WT IP20 LEDV | |
|
i
Our all-in warranty is fully included in the product price and covers both hidden defects and technical defects of the product that occurred before delivery. The warranty period differs per product and ranges from 1 year to a maximum of 7 years.
|
Any Lamp all-in warranty | 3 Years |
| Average Lifetime (h) | 30000 |
Technical Information
|
i
Lighting with a built-in emergency lighting unit (battery) continues to burn for a certain time if the power fails. |
Emergency Lighting | No Emergency Unit |
|---|---|---|
|
i
A fixture with a tiltable design makes it possible to direct the lighting specifically at an object or surface. This can play a particularly important role in shops (putting a new collection in the spotlight) or galleries (accentuating works of art). It can also influence the purchasing behaviour or interpretation of visitors.
|
Tiltable | No |
|
i
The technology indicates the operating base of a light source. The most well-known and energy-efficient example is LED. Other techniques include Halogen, gas discharge, TL (fluorescent) and the light bulb.
|
Technology | LED Integrated |
|
i
This indicates which wattage of your old/conventional lighting is replaced by this LED product.
|
Replaces (Watt) | 1x18 |
|
i
The wattage indicates how much energy a light source consumes. With LED lighting, the wattage is considerably lower than with conventional lighting. LED lamps with a higher wattage generally also have a higher light intensity (number of lumens).
|
Wattage | 6 |
|
i
Lighting with a voltage of 220-240 Volt can be connected directly to the mains. Lighting with a different mains voltage (12 Volt and 24 Volt) requires an (electronic) transformer.
|
Voltage (V) | 220-240 |
|
i
When you dim lights, the full power does not have to be used. You therefore save extra on energy costs. Dimmable lamps can also be used to create an extra cosy atmosphere. Keep in mind that you need a LED dimmer to dim LED lights.
|
Dimmable | Not Dimmable |
|
i
The colour code is a combination of colour rendering (CRI) and light colour (Kelvin). The first number indicates the colour rendering (1 = very poor colour rendering, 9 = maximum colour fastness). The second and third number contains the light colour. Example: the colour code 830 consists of good colour rendering (8) and warm white light (3000K). |
Colour Code | 865 Daylight |
|
i
|
Colour temperature (Kelvin) | 6500 Daylight |
|
i
Colour rendering is also known as Colour Rendering Index (CRI) and indicates the extent to which a light source reproduces colours, compared to the actual colours in daylight. Products with a good (80-89 Ra) or excellent (90-99 Ra) colour rendering show minimal deviations in the colour spectrum.
|
Colour Rendering (Ra) | 80-89 |
|
i
The light color indicates the color of the light emitted: white, colored, or UV. For many products in our assortment, the light is white, available in a range from very warm white to daylight white (expressed in Kelvin). With colored light, you have two options: 1. A single fixed color, such as red or green. 2. RGBW, which means you can adjust the light color at any time: white or colored.
|
Colour of Light | White |
|
i
The colour control type tells you in which way you can regulate the colour of the light. You have the following options:
1. Single colour: This light has one fixed light colour. You cannot change it.
2. CCT: You choose from 2 or 3 fixed colours via a switch, such as warm white or cool white.
3. Tunable white: The white light can take any values in the listed Kelvin scale, for instance 2200K up to 6500K.
4. Dim to warm: Dimming makes the light warmer (more yellow). The more you dim, the warmer the colour.
5. RGB: You can set the light to almost any colour. From red to blue, you fill it in completely as you wish.
By choosing your preferred light colour options, you are one step closer to the right light product.
|
Light colour options | Single Color |
| Driver Included | Yes | |
|
i

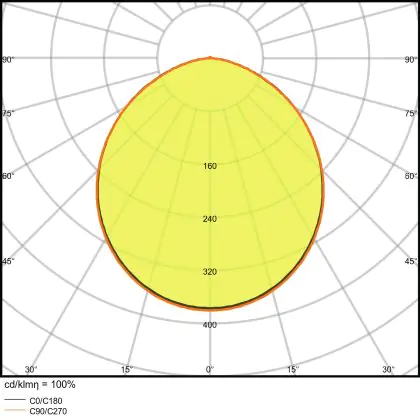

A beam angle indicates the angle of the light beam coming from a light source. The smaller the radiation angle in degrees (D), the narrower the beam angle.
|
Beam Angle (degree) | 120 |
|
i
The number of lumens (lm) is the light output of a light source. The higher the number of lumens, the more light the light source emits. The wattage and the number of lumens are not connected to each other. An LED lamp with a low wattage can have a higher number of lumens than a conventional lamp with a high wattage.
|
Luminous Flux (Lumen) | 430 |
|
i
The Luminous Efficacy (lm/W) indicates how efficiently a light source uses energy. We divide the number of lumens by the wattage. The higher the number, the more efficient a product is in terms of energy consumption. LED lighting has a considerably higher lumen/Watt ratio than conventional lighting.
|
Luminous Efficacy (lm/W) | 70 |
|
i
The power factor indicates how efficiently a luminaire uses electricity. The rule is: the higher the power factor, the more efficient the power consumption. A product with a high power factor (0.85 - 0.95) is also the safest. This is because the amount of unnecessary power consumption (blind current) is very limited.
|
Power factor | >0.50 |
| Installation Depth (mm) | 50 | |
|
i
The Unified Glare Rating (UGR) indicates the extent to which the light of a product is blinding. This value differs per application and must comply with European standards (EN 12464-1). A low UGR value stands for a low glare factor. For offices and schools lighting with a UGR<19 value is mandatory and for public areas UGR<22.
|
Unified Glare Rating | < 28 - for hallways and storage rooms |
| Optical Cover | PC (Polycarbonate) | |
| Suitable for Outdoor | No | |
| Product Type Category | LED Downlight |
Fixture Information
|
i
Are you specifically looking for an (LED) fixture that you can install on the ceiling, wall or floor? With this filter, you can easily select your preferred type of mounting. Please note that certain fixtures can be mounted in multiple ways using the installation materials supplied (e.g. a LED bulkhead). Mounting is also possible using individually purchasable fixture accessories, such as a frame or suspension kit for a LED panel. |
Mounting Method | Recessed |
|---|---|---|
|
i
The cut out of a fixture differs from the dimensions and specifically refers to the size of the hole in the ceiling that is required to securely fasten the light source during installation.
|
Cut out (mm) | 105 |
|
i
The IP value indicates the degree of protection against the ingress of moisture and dust. The 1st digit (0 = not protected until 6 = completely dustproof) indicates the protection against dust. The 2nd digit (0 = not protected until 8 = protected against immersion) indicates the protection against water. Products with an IP44 rating are splashproof and products with an IP65 rating or higher are (completely) dustproof and waterproof. |
IP-rating | IP20 |
|
i
The impact protection value (IK) stands for impact resistance and protection against vandalism. This is expressed in combination with 2 digits (IK00 - IK10). Products with IK00 are not protected against resistance. Products with IK10 offer resistance to shocks of 20 Joule and are also vandal-proof. |
Impact Protection (IK) | IK03 - 0.35 joule |
| Operating Temperature | -20 to +50 | |
| Housing | PC (Polycarbonate) | |
|
i
The colour of the fixture can play a major role in the interior design of a room. You can opt for a neutral white design or a darker colour, such as black or silver, to make the light source stand out or even turn it into a decorative feature on its own.
|
Colour of the Fixture | White |
| Colour of material | White | |
| Fixture Connection | PI [Push-in connector 2-pole] | |
| Series | DOWNLIGHT SLIM |

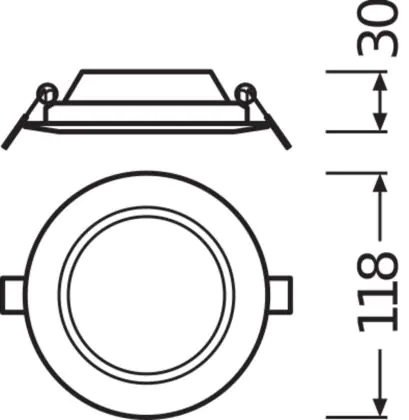

Dimensions
| Height (mm) | 30 | |
|---|---|---|
| Diameter (mm) | 118 |
Sensor Information
|
i
Lighting with a sensor only turns on when it receives a specific signal. This reduces energy costs. The (built-in) sensors respond to darkness (twilight switch) and/or movement (motion sensor).
|
Type of sensor | No Sensor |
|---|
Downloads
Description Ledvance LED Downlight Slim Round DN105 6W 430lm 120D - 865 Daylight | 118mm
120°
Highlights
- Energy savings of 67%
- Long lifespan and warranty
- Daylight - 6500K
Energy savings of 67%
This Ledvance Slim Round LED downlight uses just 6 watts of energy to replace one that uses 18 watts and that means energy savings of 67%! It has the best possible energy label of A++ and saving energy isn't just better for the environment, it's better for your wallet too!
Long lifespan and warranty
A lifespan of 30,000 hours means that this LED downlight will last for approximately 10 years if it's on for 8 hours a day, 7 days a week. It's covered by an all-in warranty of 3 years for extra peace of mind.
Daylight - 6500K
This LED downlight has a slim design with a polycarbonate housing and the colour temperature of 6500K makes this light suitable for use wherever optimal visibility is required.
If you're looking for an attractively-priced LED downlight, this model by Ledvance is a good choice.
